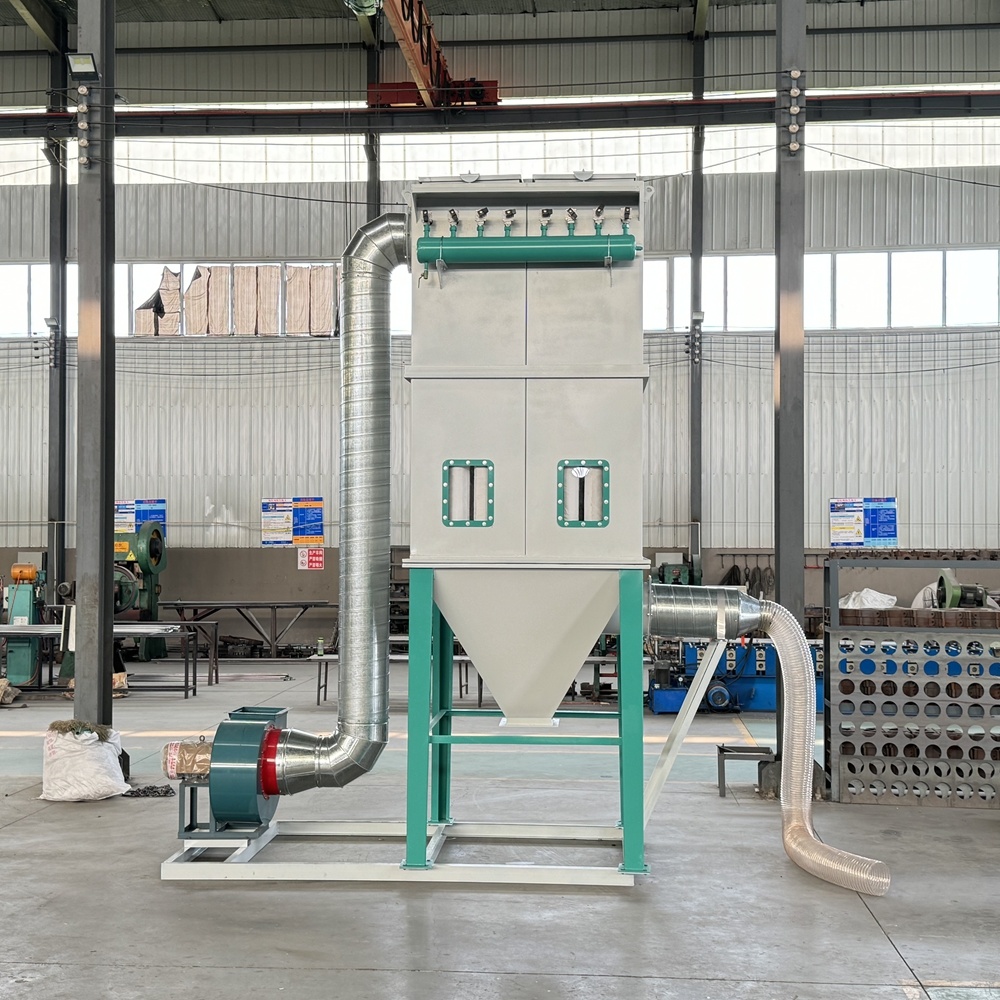

Bag Dust Collector
Let Our Industry Experts Create Your Tailored Solution! Contact US !
Products Category
Tag list
- Product Details
-
Product overview
Bag filter, also known as bag filter or filter dust collector, is an efficient dry dust removal equipment. It uses a bag filter element made of fiber braid to capture solid particles in dust-containing gas, and is particularly suitable for capturing fine, dry, non-fibrous dust.
Working principle
1. Filtration principle: dust-containing gas enters the dust collector from the air inlet, and some large particles of dust are separated by gravity and inertial force when passing through the ash hopper, and fall directly into the bottom of the ash hopper. The rest of the dust-containing gas enters the filter bag filter area of the middle box, and the dust is blocked on the outer surface of the filter bag when the gas passes through the filter bag, while the purified gas enters the upper box through the filter bag mouth and is finally discharged from the air outlet.
2. The principle of cleaning ash: with the extension of filtration time, the dust layer on the filter bag is continuously thick, and the resistance of the equipment is increased. When the resistance reaches the set value, the dust cleaning device starts. During the ash cleaning process, the poppet valve of a sub-chamber is closed to cut off the filtered air flow, and then the electromagnetic pulse valve is opened, and the compressed air expands rapidly into the filter bag, causing the filter bag to expand and deform and vibrate. Under the action of the reverse air flow, the dust attached to the outer surface of the filter bag is stripped and falls into the ash hopper. After the dust cleaning is completed, the electromagnetic pulse valve is closed, the poppet valve is opened, and the filtration state of the chamber is restored.
main structure and composition
Bag filter is mainly composed of upper box (clean air chamber), middle box (dust air chamber), ash hopper, pulse ash cleaning system, filter bag, filter bag skeleton, air inlet and outlet, differential pressure meter, maintenance manhole, ash unloading device and PLC control instrument.
Application areas
Bag dust collectors are widely used in steel plants, steel plants, ferroalloy plants, refractory plants, foundries, power plants, garbage incinerators, coal-fired boilers, fluidized bed boilers, asphalt concrete mixing, building materials, cement ceramics, lime, Dust control, purification and collection in gypsum, metal smelting, chemical industry, coke, carbon black, dyes, pharmaceuticals, plastics, mining, food processing, flour, electronics industry and wood processing.
features and advantages1. Efficient dust removal: The bag filter has efficient dust removal capacity and can remove most of the dust and particles.
2, wide applicability: suitable for various types of dust and particulate matter removal.
3. Automatic control: equipped with PLC control system to realize automatic operation and monitoring.
4. Easy to maintain: The equipment structure is simple and clear, which is convenient for daily inspection and maintenance.
Energy saving and environmental protection: reduce emission concentration and emissions, meet the requirements of national environmental protection standards and save energy consumption.
Parameters
24 bags Processing air volume 960-1440（m³/h） 36 bags Processing air volume 1440-2160（m³/h） Filtration area 20 ㎡ Filtration area 30 ㎡ Number of pulse valves Right angle 1 inch 4 sets Number of pulse valves Right angle 1 inch 6 sets Control System 1 set Control System 1 set cloth bag skeleton 24 sets cloth bag skeleton 36 sets Overall dimension 3750*976*636mm Overall dimension 3650*976*976mm 48 bags Processing air volume 1920-2880（m³/h） 64 bags Processing air volume 2560-3840（m³/h） Filtration area 40 ㎡ Filtration area 53 ㎡ Number of pulse valves Right angle 1 inch 6 sets Number of pulse valves Right angle 1 inch 8 sets Control System 1 set Control System 1 set cloth bag skeleton 48 sets cloth bag skeleton 64 sets Overall dimension 3750*1316*976mm Overall dimension 3650*976*976mm 80 bags Processing air volume 3200-4810（m³/h） 120 bag Processing air volume 4810-7210（m³/h） Filtration area 66 ㎡ Filtration area 100 ㎡ Number of pulse valves Right angle 1 inch 8 sets Number of pulse valves Right angle 1 inch 12 sets Control System 1 set Control System 1 set cloth bag skeleton 80 sets cloth bag skeleton 120 sets Overall dimension 3950*1656*1316mm Overall dimension 4400*3516*1726mm
